PixelTraq Calibration Certificate

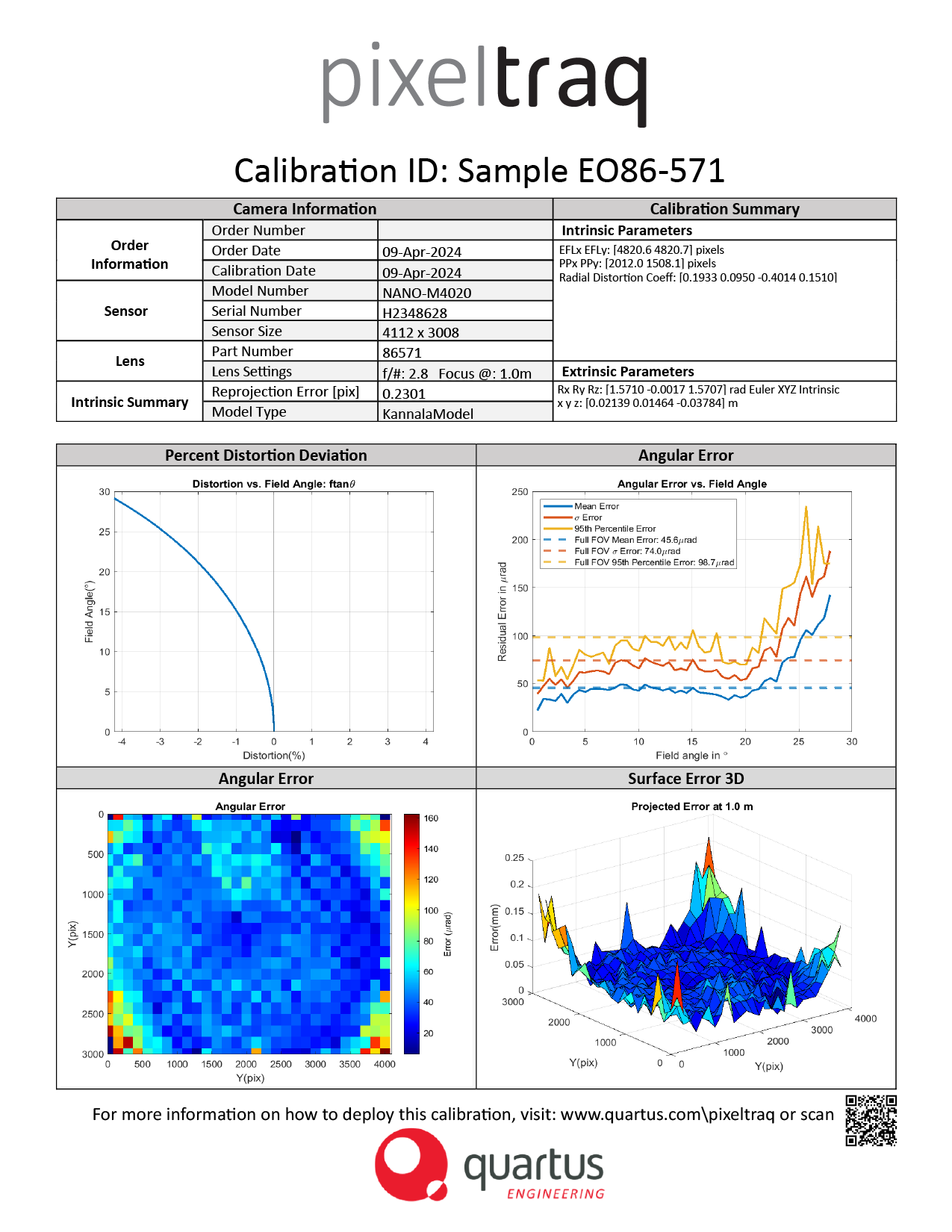

Each camera that completes the PixelTraq calibration is issued a unique Calibration Certificate which summarizes the terms for both intrinsic and extrinsic parametric calibrations as well and residual model-fit errors
Sample Certificates
|
Lens P/N |
Lens MFR |
Lens EFL |
Camera P/N |
Camera MFR |
Cal Certificate |
|
89-340 |
Edmund Optics |
3.0 mm |
acA4024-29um |
Basler |
|
|
37-393 |
Edmund Optics |
3.5 mm |
NANO-M2020 |
Teledyne Dalsa |
|
|
89-344 |
Edmund Optics |
4.0 mm |
acA4024-29um |
Basler |
|
|
37-398 |
Edmund Optics |
4.5 mm |
acA4024-29um |
Basler |
|
|
63-778 |
Edmund Optics |
12 mm |
acA4024-29um |
Basler |
|
|
36-512 |
Edmund Optics |
16 mm |
NANO-M4020 |
Teledyne Dalsa |
|
|
86-571 |
Edmund Optics |
16 mm |
NANO-M4020 |
Teledyne Dalsa |
|
|
33-305 |
Edmund Optics |
25 mm |
acA4024-29um |
Basler |
|
|
33-306 |
Edmund Optics |
35 mm |
acA4024-29um |
Basler |
|
|
85-869 |
Edmund Optics |
35 mm |
acA4024-29um |
Basler |
|
|
35-192 |
Edmund Optics |
50 mm |
acA4024-29um |
Basler |
|
|
86-574 |
Edmund Optics |
50 mm |
NANO-M4020 |
Teledyne Dalsa |
|
16-851 |
Edmund Optics |
100 mm |
NANO-M4020 |
Teledyne Dalsa |
|
86-410 |
Edmund Optics |
100 mm |
NANO-M4020 |
Teledyne Dalsa |
|
|
16-852 |
Edmund Optics |
150 mm |
NANO-M4020 |
Teledyne Dalsa |
